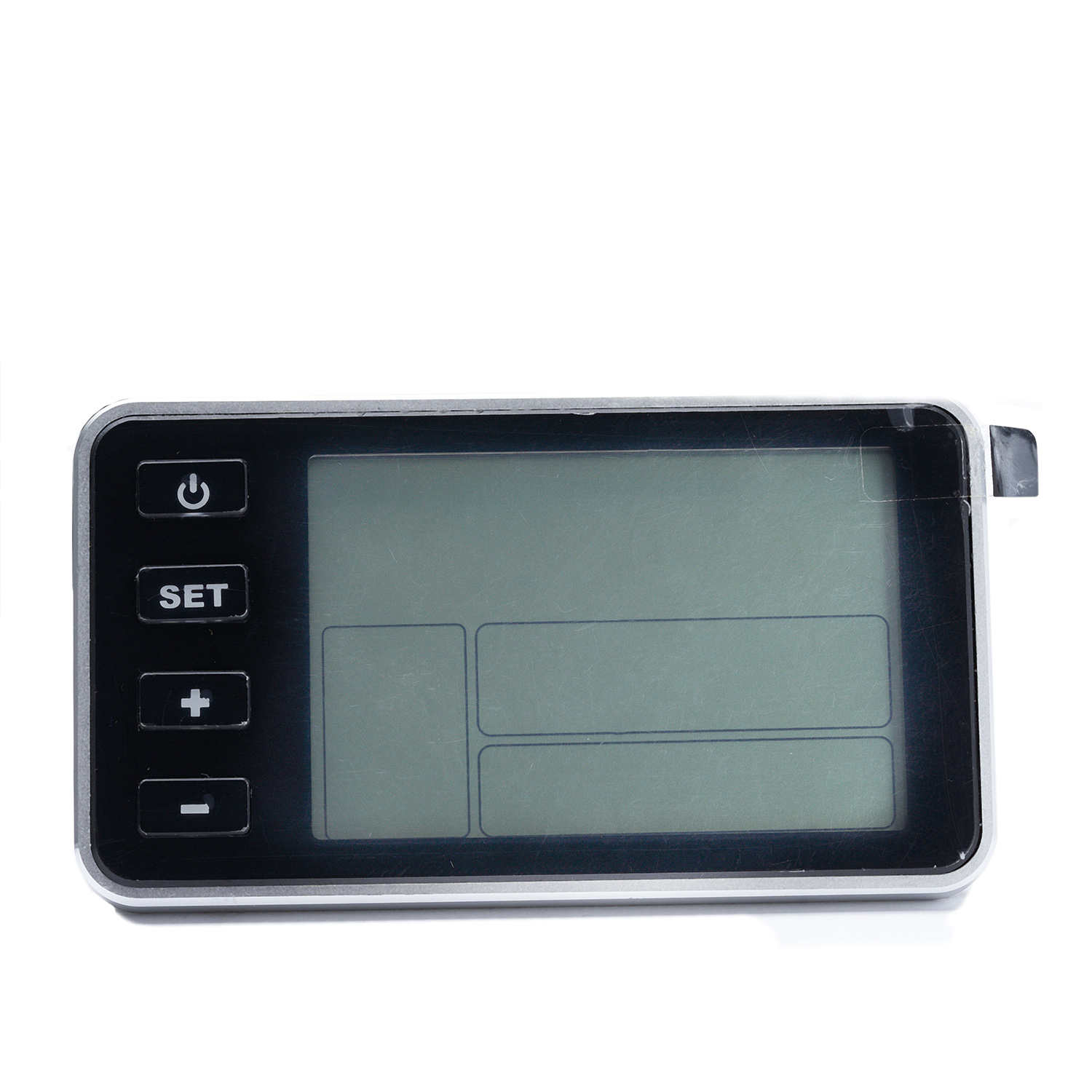

eDrive Units ibo-C500 LCD Display Description SPEC Download A LCD display customized for the ibo-CNTR-09S e-cargo bike. Model ibo-C500 Rated voltage 36V Dimension (approx.) 98L x 55W x 12.8H mm Weight (approx.) 850g Housing Black (plastic housing) Rated work current 10mA Switch max current output 200mA Communication protocol UART(RS232) Connector Type & IP Rating EM6 6-pin male plug-and-turn plastic connector/ IP66 Waterproof rating IP65 Operating Temp. -20oC to 80 oC Storage Temp. +0oC to 45 oC Output Cable Length & ID Tag Depends on customer’s command & a “Yellow Tag # 3” is added. Standards Compliance CE, RoHS, EN14764, EN15194 Warranty 24 months BACK
