eDrive Systems

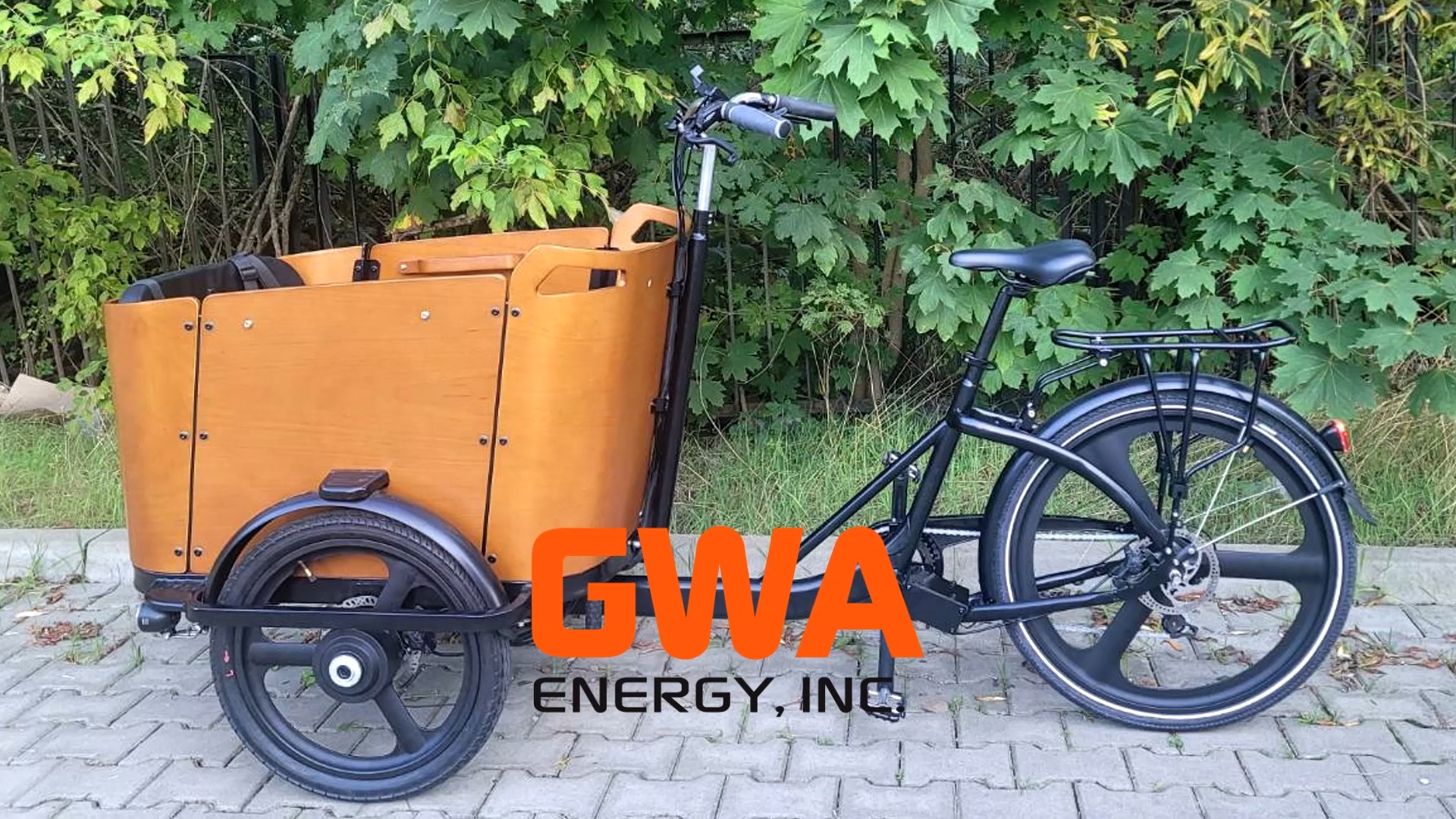

GWA e-Cargo Bike Powertrain
DUAL MOTOR
|
THE ADVANTAGES OF DUAL MOTORS |
|
√ Reliability
√ Shareability
√ Stability
* High torque.
* Increased load capacity.
* Improved climbing ability.
* Dual-wheel coordination mechanism enhances steering smoothness and stability.
* Distributing the current reduces motor consumption, extending the motor's lifespan.
|
DMO Scenarios We Provide
|

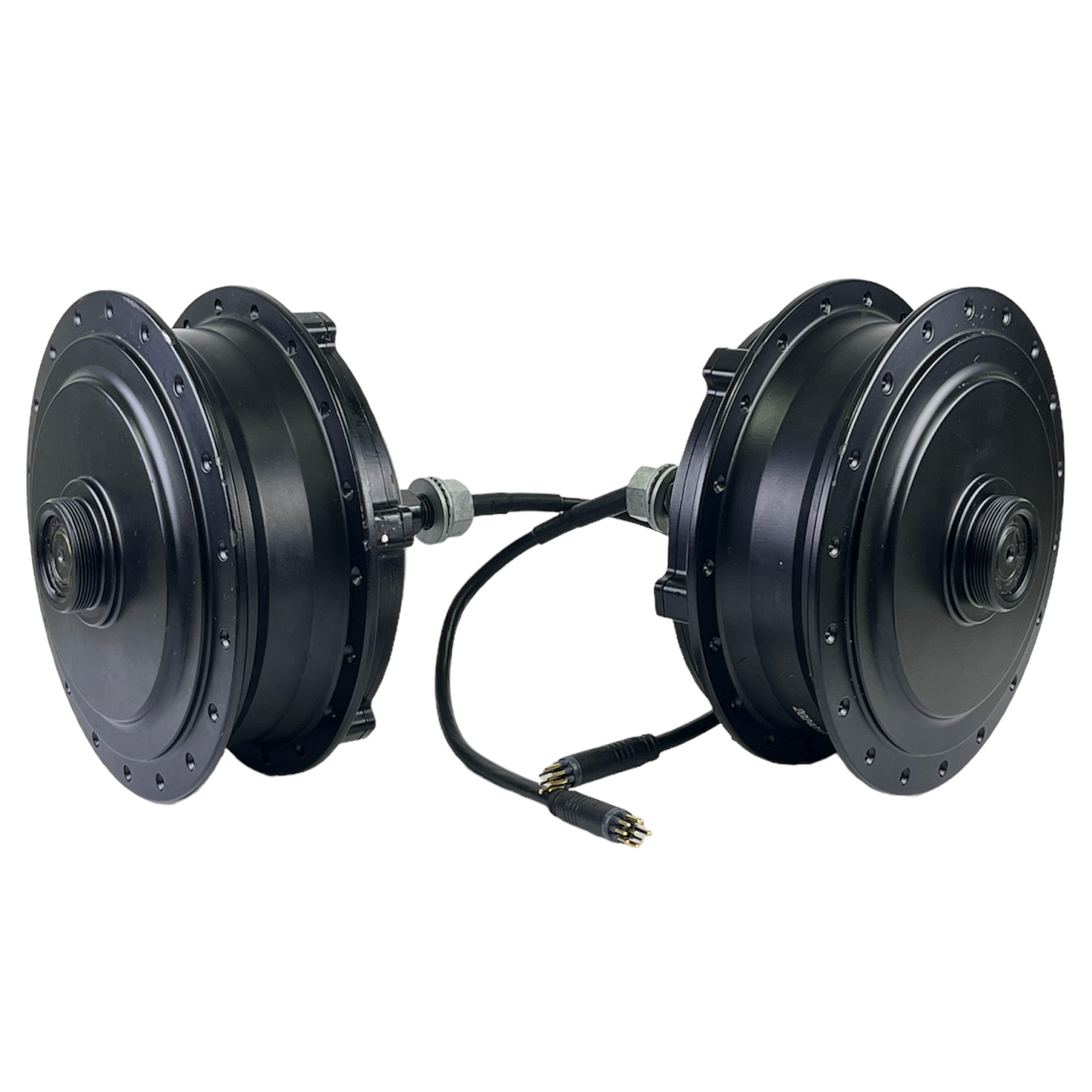

Front hub Motor -Left
|
SM-20FL350
|
48V / 40~50N.M, IPX5
|
|
Front hub Motor- Right
|
SM-20FG350
|
48V / 40~50N.M, IPx5
|
|
Front alloy Motor -Left
|
AM-20FL350
|
48V / 40~50N.M, IPX5
|
|
Front alloy Motor- Right
|
AM-20FR350
|
48V / 40~50N.M, IPx5
|
|
Rear alloy wheel
|
AR-26
|
|
| Controller | DT48 | 48V / 30A Max. CANBUS |

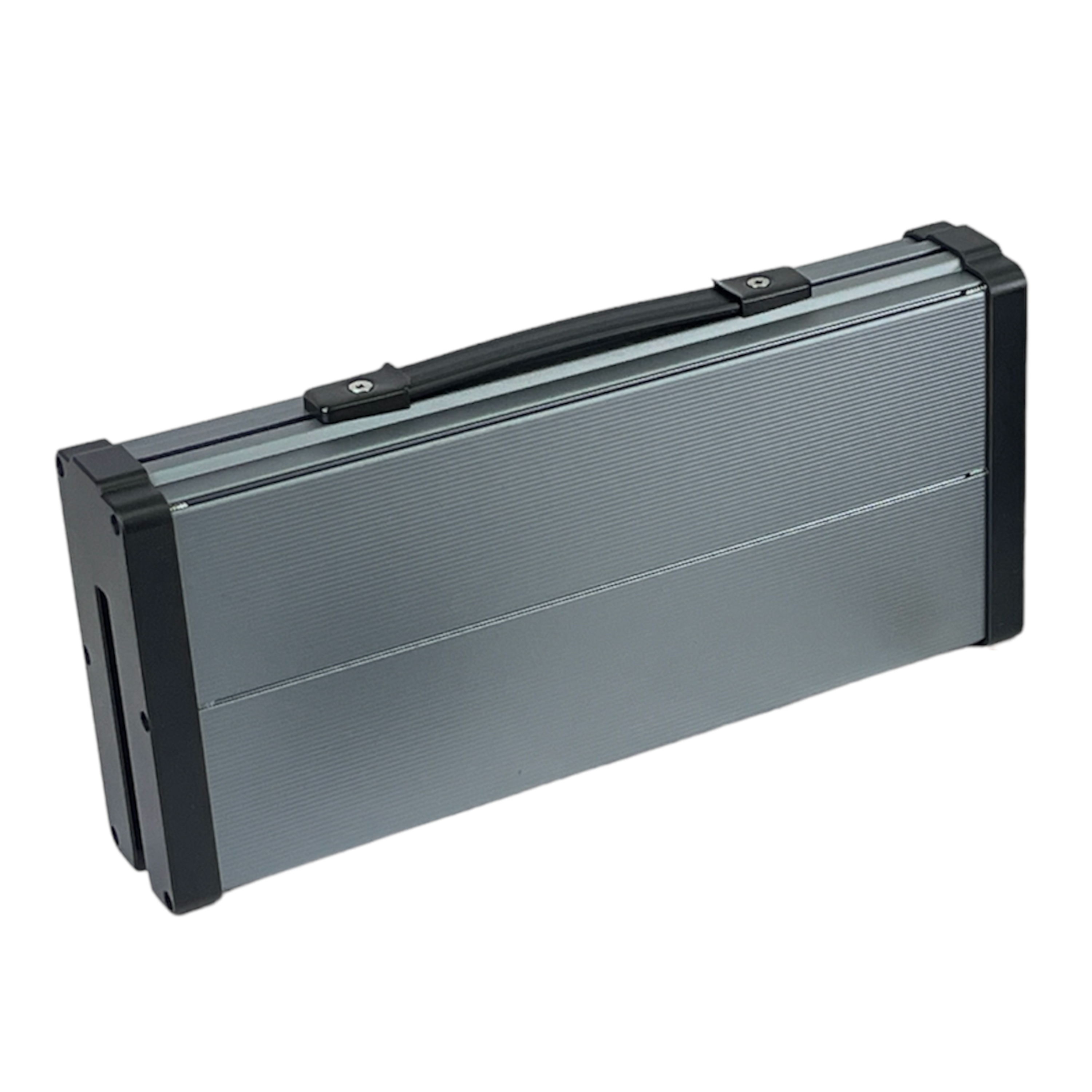

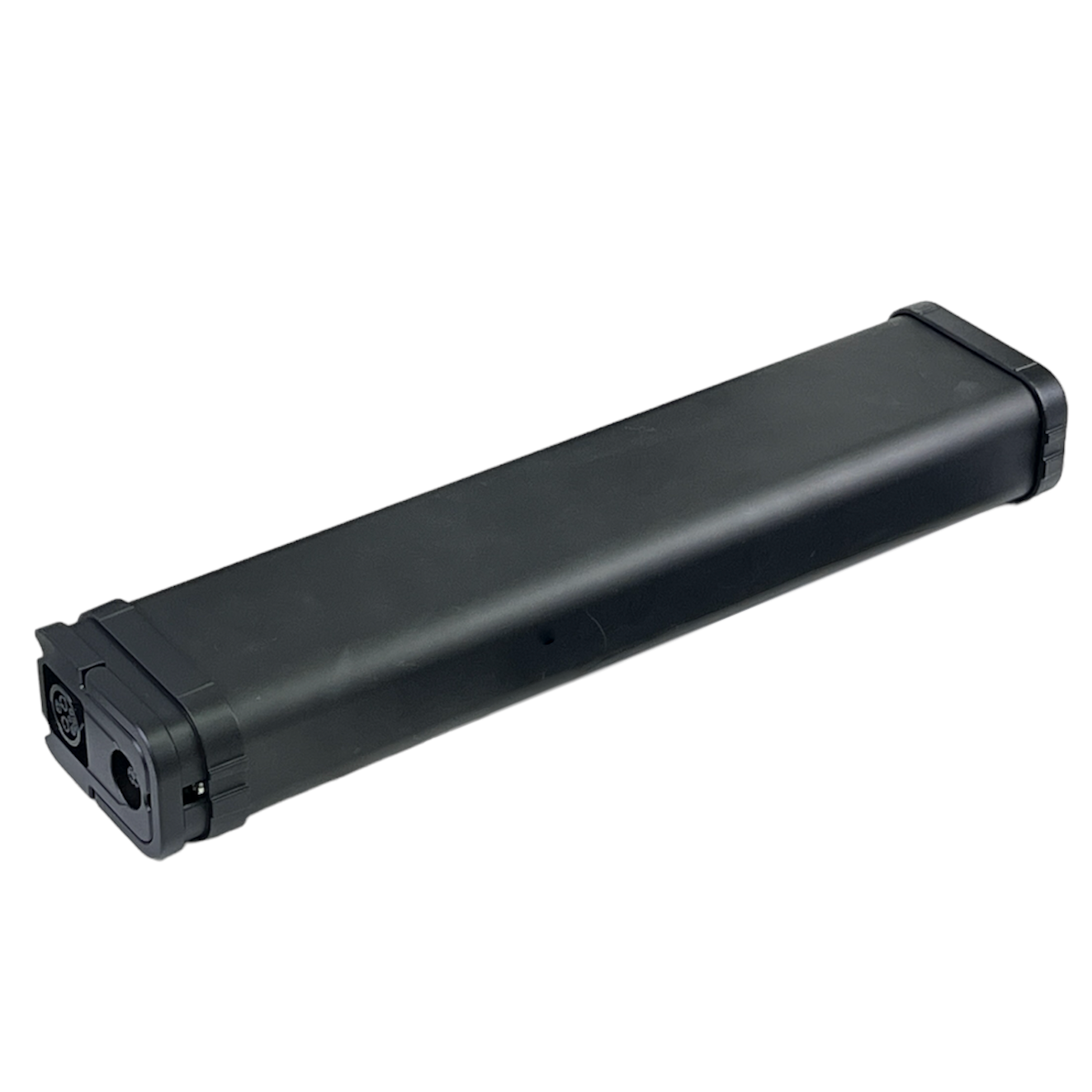

| Lithium Ion Battery | HX48500 UX48500 / UX48750 | 48V 500Wh, IPX5, CANBUS48V 500/750Wh, IPX5, CANBUS |
| Display | G100C, G150C, G610CC | 12V 1A , IPX7, CANBUS |

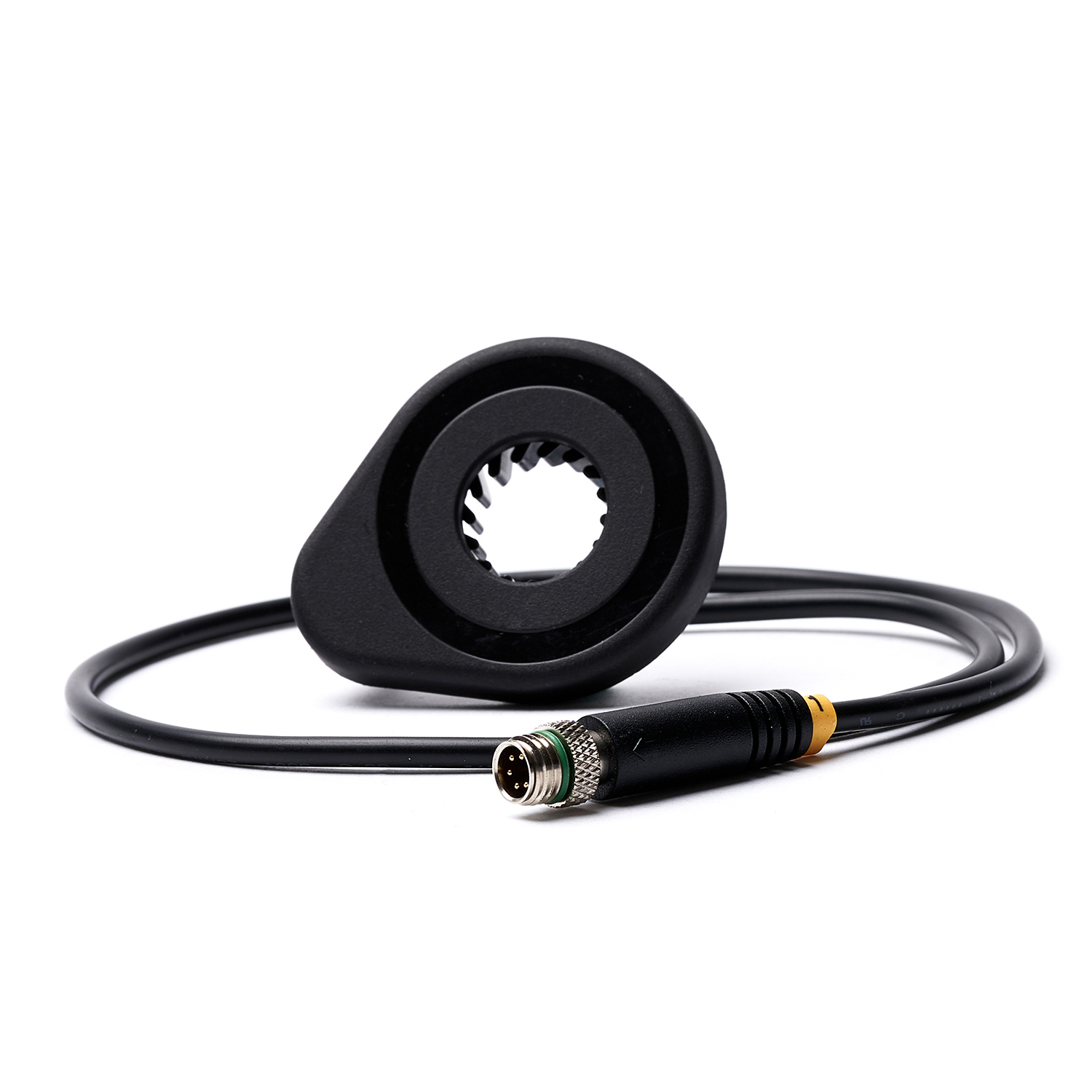

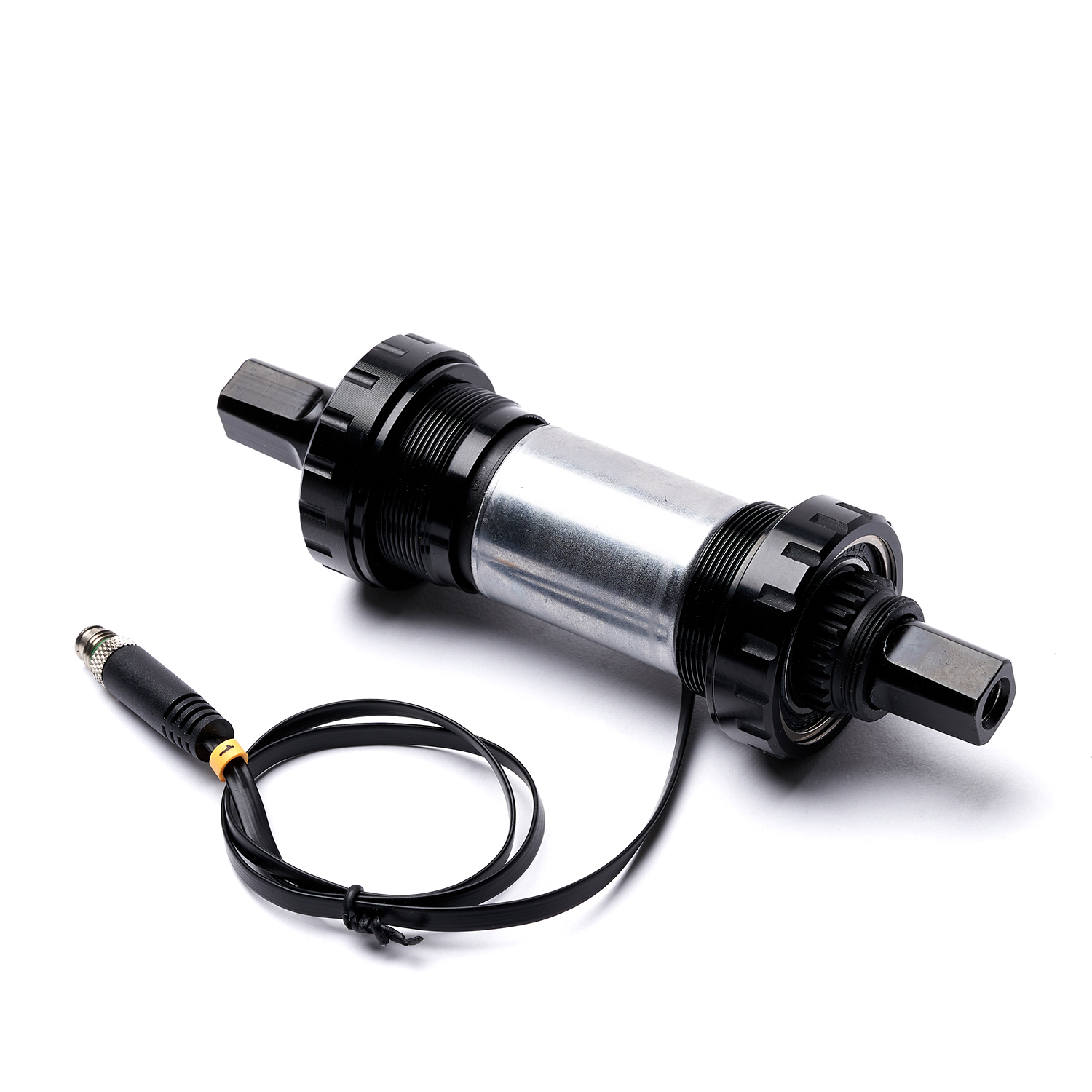

| Torque Sensor | T2B73153, T2B100172, T2B83160 | BB with CL45 |
| Charger | BPC-L14S020CD | 52V 2A / 12V 0.5A CANBUS |
Controller modes: ECO; (Mode 1); Tour (Mode 2); Active (Mode 3); Sport (Mode 4); Boost (Mode 5).
All our products are in compliance with EN15194:2017, ISO13849-1, UN38.3, IEC6213
Youtube:
GWA Dual Motor Operation (Full Version -Introduction and Road test.)
