eDrive Systems



The advantages of dual motors



√  Reliability

√  Shareability

  Stability

 *  High torque.

 *  Increased load capacity.

 *  Improved climbing ability.

 *  Dual-wheel coordination mechanism enhances steering smoothness and stability.

 *  Distributing the current reduces motor consumption, extending the motor's lifespan.


Youtube:
GWA Dual Motor Operation (Full Version -Introduction and Road test.)





All Scenarios We Provide











Dual Hub Motor CANBUS System


Front hub Motor -Left

GWA07FL-48285M

48V / 45N.M Max. , IPX5

Front hub Motor- Right

GWA07FR-48285M

48V / 45N.M Max., IPx5

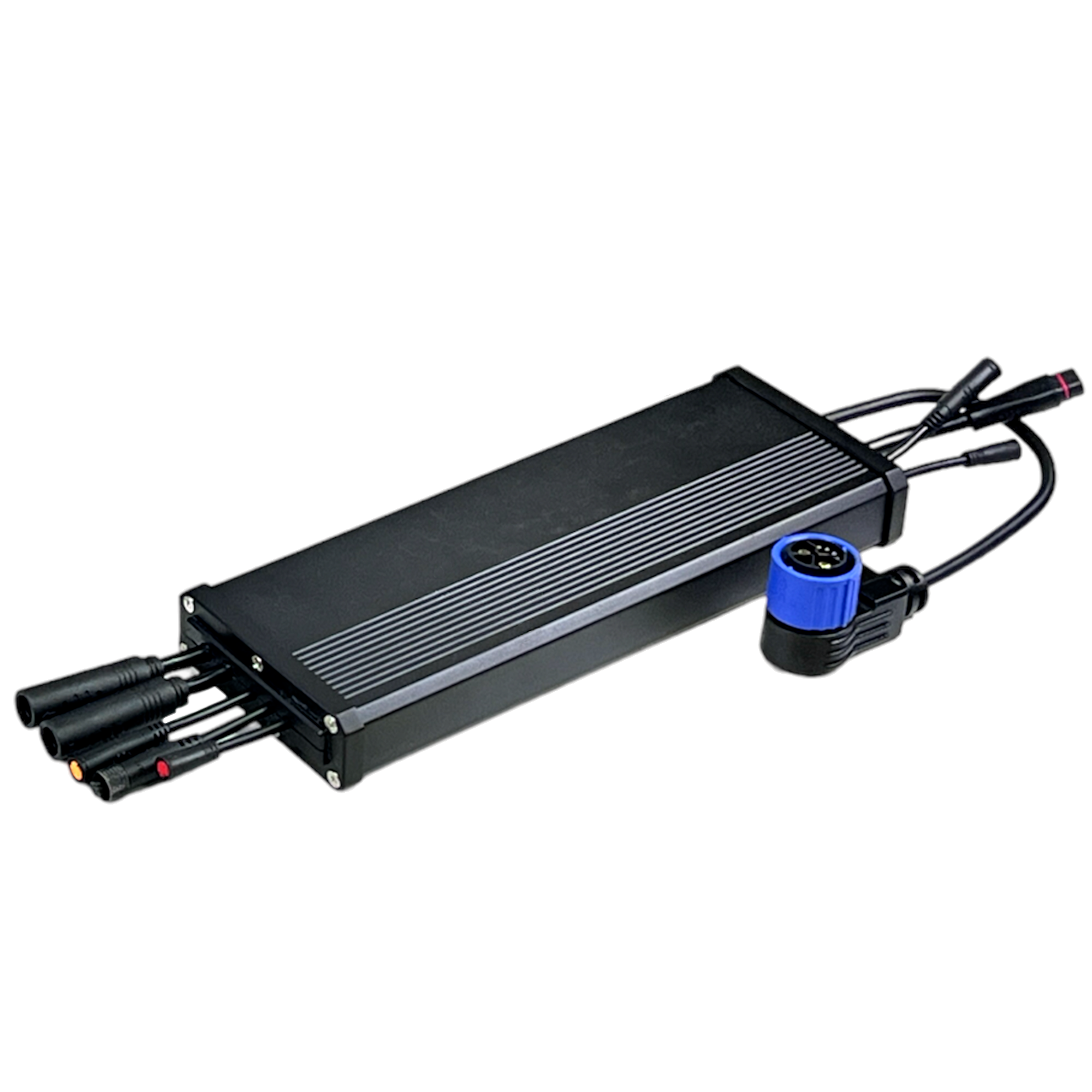

Controller

HX-CNTR-48TDSA

48V / 30A Max. CANBUS

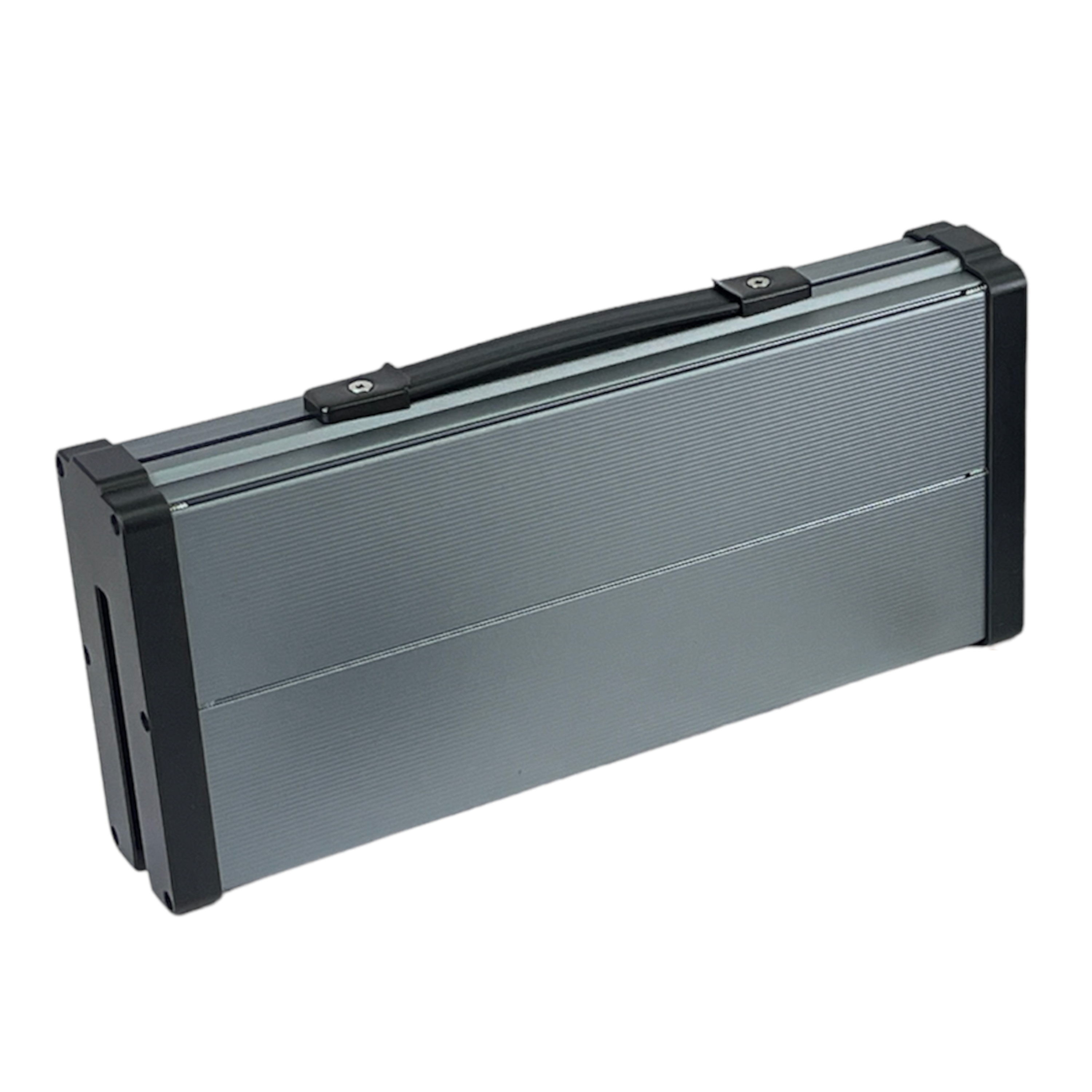

Lithium Ion Battery

HX48500

48V 500Wh, IPX5, CANBUS

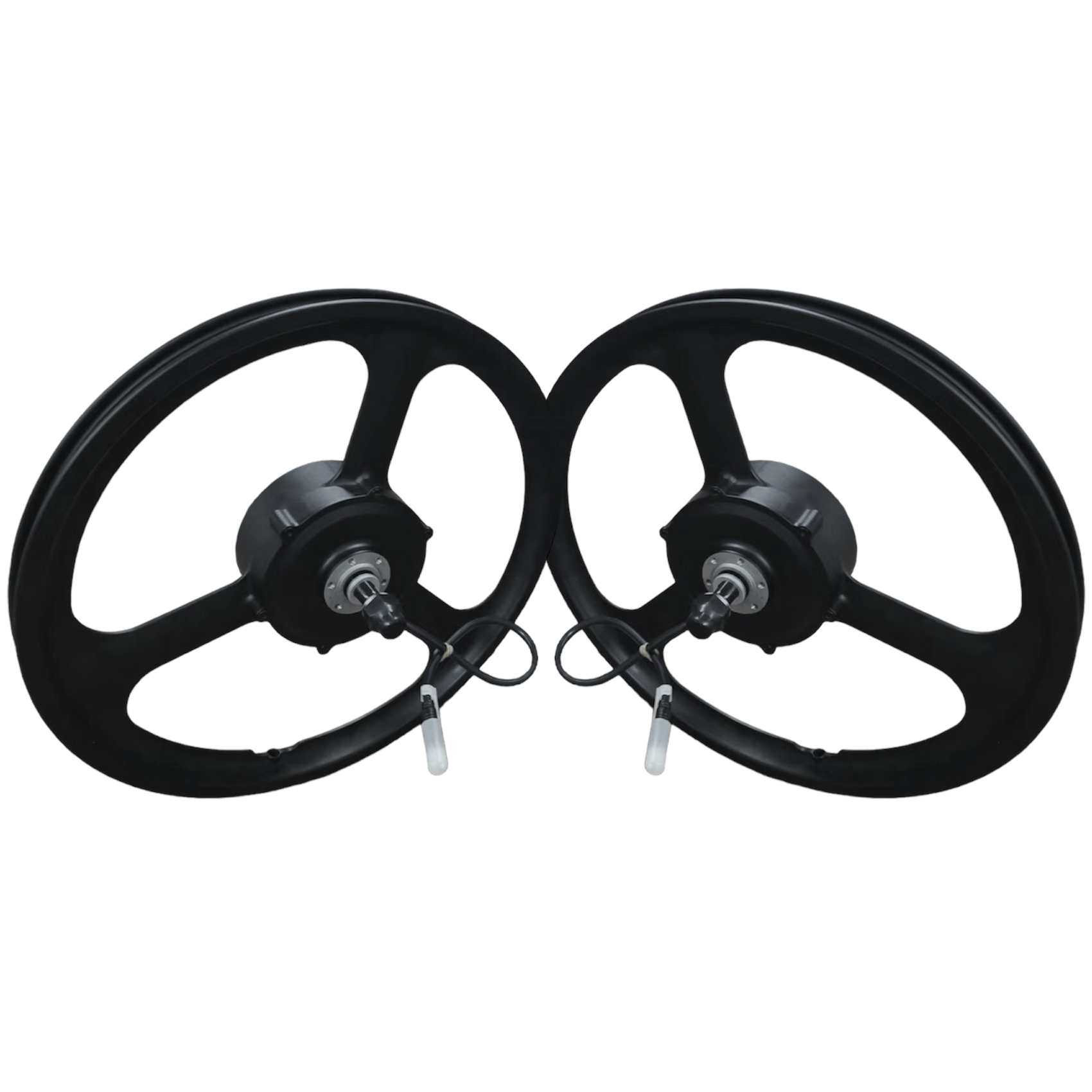

Dual integrated-Alloy Motor CANBUS System


Front alloy Motor -Left

HK-20W01-L

48V / 50N.M min. , IPX5

Front alloy Motor- Right

HK-20W01-R

48V / 50N.M min., IPx5

Rear alloy wheel

HK-26



Controller

HX-CNTR-48TDSA

48V / 30A Max. CANBUS

Lithium Ion Battery

HX48500

48V 500Wh, IPX5, CANBUS

Controller modes: ECO (Mode 1); Tour (Mode 2); Active (Mode 3); Sport (Mode 4); Boost (Mode 5).






Features/Functions

High-lights

Offers dual front motor systems for hilly road conditions

Load-sharing & motor redundancy

Introduces Smart controller which features CANBus, Gyroscope, Bluetooth & OTA functions in the controller as the basic requirements.

Intelligent controller

Introduces an “Alloy motor" (a spoke-free geared hub motor)

No need to do motor-spoking

Adopts Tier-1 quality & safety standards for the new systems

Super high standards

High-quality battery pack using Tier-1 lithium cells

Safety & reliability

Integrates end-user’s smartphone & GWA remote IoT cloud server via APP/Bluetooth connections

Smartphone & IoT integration

Enhances end-user self-diagnostic tools (e.g., APP, charger) such that problems can be “identified” remotely to reduce on-site service cost

Huge cost saving for dealers

Launches a web-accessed life-cycle RMA cloud server to dealers for product traceability & warranty validation

Product traceability &

warranty validation

Launches eHub for a fully-automatic e-Cargo bike

Next generation product

All our products are in compliance with EN15194:2017, ISO13849-1, UN38.3, IEC6213
